XF-300 Automatic Sachet Powder Packing Machine

Short Description:

We are equipped with a professional technical team to be able to solve your questions and needs. One-stop service from sales to after-sales, save your time and improve production efficiency.


Product Detail

Product Tags

Product Display

Product Application

Product Application (1)
Product Application (2)

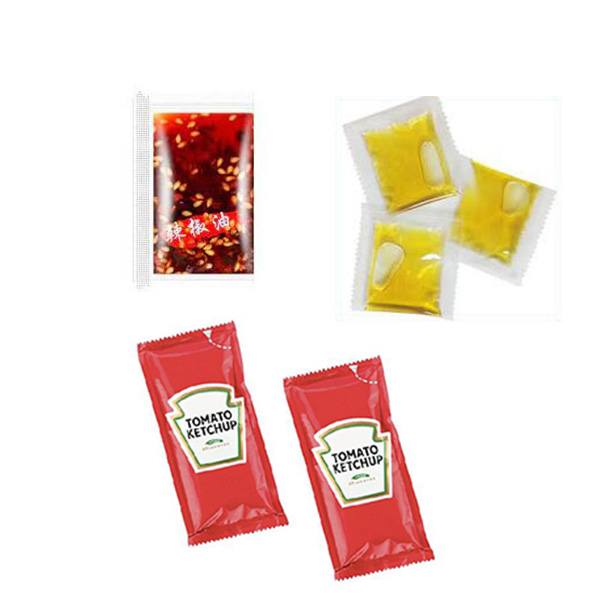

sachet simple

Product Description

This series of products has been carefully developed by our company, and can be operated with optional PCB panel stick or PLC touch screen, and a powder screw feeding system is installed, which can pack powdered products such as milk powder, beverage powder, pharmaceutical and chemical powder, etc. Can meet the needs of different specifications of packaging.All parts in contact with the material and other parts, are made of stainless steel and non-toxic materials.

Performance and Features

1. Bag-making, measuring, filling, sealing, cutting and counting are all finished automatically.

2. Either under set length control or photo-electronic color tracing, we set bag length and cut in one step. Time and film saving.

3. The temperature is under independent PID control, more suitable for different packing materials.

4. The driving system is simple and reliable, and maintenance is easy.

5. Applicable material should be composite films like: PET/PE, Paper/PE, PET/AL/PE, OPP/PE.

Technical Parameters

Machine Name

Automatic Powder Packing Machine

Model

XF-300

Sealing Type

4 side sealing

 side sealing

Measurement

Auger type(100g)

Cutting Type

Pneumatic Straight cutter with tear down

Sealing Type

Vertical sealer and horizontal sealer: diamond or line

Packing Speed

30 - 70bag/min (Depend on Products)

Bag Size

L30-150mm  W10-130mm

(change width by replacing bag former)

Materials Density

According to actual materials

Total Power

2.05KW

Voltage

220v 60HZ 3P / 110v 60HZ 1P

Material

Stainless steel 304

Machine Dimension  (L×W×H)

930x730x1820mm

Weight

250KG
